CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft

CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft

Products - Life Saving Appliance - Life Raft
  • Material
    Rubber, Fabric
  • Production Standard
    SOLAS
  • Capacity
    4-12 Persons
  • Color
    International Orange
  • Type
    Small Leisure Life Raft
  • Inflating
    Automatically
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, DNV-GL, BV
  • Model Number
    Valise Bag Leisure Life Raft
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box
  • Delivery Time
    5-30 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 Sets Per Month

CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft

  • CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft
  • CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft
  • CCS, DNV-GL, BV Approved ISO9650 Standard 4-12 Persons Valise Bag Small Leisure Life Raft
Get Price Contact Now

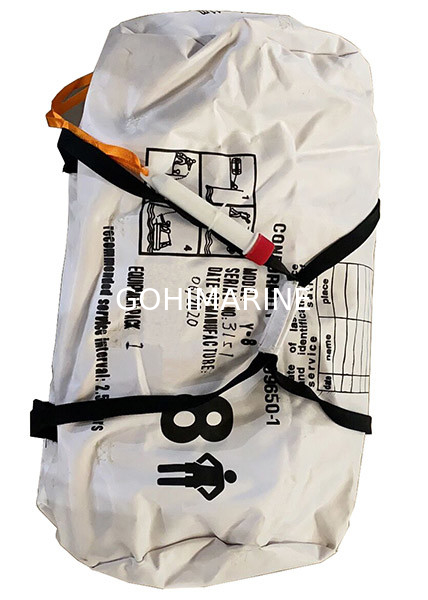

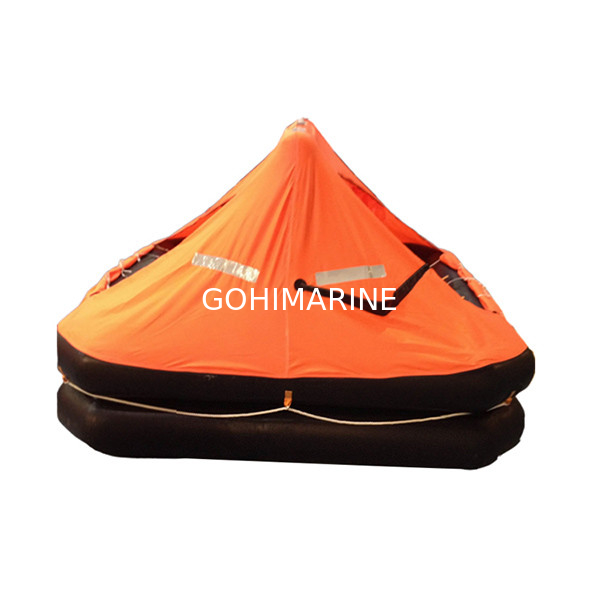

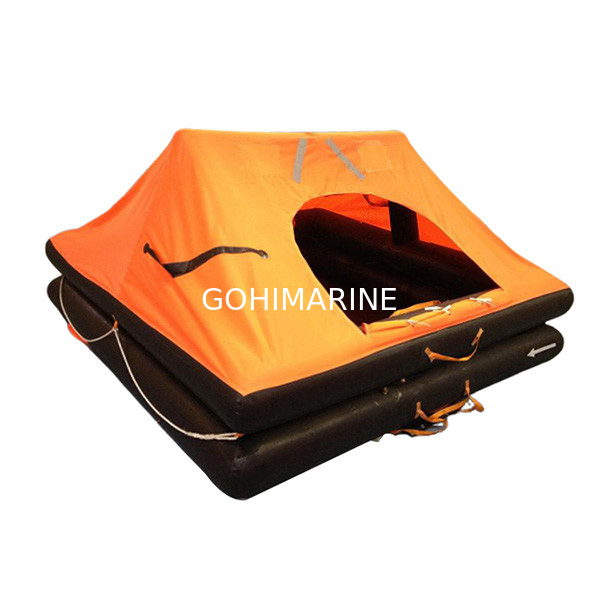

The leisure life raft is usually used for yacht etc. There are valise bag pack and square GRP container pack available.

It is approved by CCS, BV, DNV-GL etc and meets the standards:

1. ISO9650-1:2005 Small craft - inflatable liferafts – Part 1:type Ⅰ

2. ISO9650-2:2005 Small craft - inflatable liferafts – Part 2: type Ⅱ



Type Y-4 Y-6 Y-8 Y-10 Y-12
Physical form octagon
Length and width, mm,±1000 1700 1990 2255 2490 2730
Height, mm, ±50 1200 1250 1400 1400 1400
Cylinder Types(L)×number 3×1 5×1 5×1 6×1 7×1
Gas volume of cylinder, g CO2,±500 1500 2100 2700 3300 3700
N2,±200 150 210 180 240 370
Dimension, mm Valise bag ￠360×710 ￠410×710 ￠410×710 ￠410×820 ￠440×870
Container 760×485×320 760×525×330 760×540×350 810×565×355 915×565×350
Weight less than≤, kg Container 36 44 49 54 61
Valise bag 29 36 40 45 50

Type YF(SR)-4 YF(SR)-6 YF(SR)-8 YF(SR)-10 YF(SR)-12
Physical form octagon
Capacity 4 6 8 10 12
Length (mm),±1000 2080 2470 2790 3070 3340
width(mm),±1000 1460 1710 1920 2100 2290
Height(mm),±50 1400 1600 1700 1850 2000
Cylinder Types(L)×number 5×1 5×1 6×1 7×1 7.5×1
Gas volume of cylinder, g CO2,±500 2100 2800 3300 3700 4250
N2,±200 210 180 240 370 400
Packing dimension Valise ￠410×710 ￠430×770 ￠430×770 ￠400×800 ￠400×800
Container 760×525×330 760×540×350 810×565×355 910×565×350 910×565×350
Weight, kg ≤ Valise 40 45 49 55 /
Container 48 52 59 65 72
