CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane

CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane

  • Material
    Stainless Steel
  • SWL
    1-50Ton
  • Boom Length
    1-20M
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
  • Model Number
    Crane
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Naked In Container
  • Delivery Time
    10-60 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    120 Sets Per Month

CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane

CCS, BV, ABS Approved Hydraulic Folding Telescopic Crane



There are various forms of hydraulic folding telescopic cranes for marine use, such as folding arms, telescoping, and folding. It is used for lifting various daily necessities and seafood which are not very heavy, and widely used in commercial ships, academic research, maritime and many other fields. The ship crane adopts anti-corrosion design, with rotating gears and a relatively light weight, compact structure, it solves the problem of tight space for small ships. However, the crane can meet the lifting requirements of 34000N/M. It is a widely used marine crane.

Features:

* Flexible and reliable action

* High loading efficiency of ship crane

* Easy to operate

* Higher quality hydraulic system

* Deck arrangement is relatively simple, and requires a small deck area

* Suitable for hoisting of important pieces

Advantage:

1. Adopt advanced R & D and technical methods to ensure the reliability of the product.

2. Integral lifting winch mechanism, higher working efficiency, longer life of hydraulic system.

3.Dual pump system with separate hydraulic circuit for hoist and luffing/slewing to ensure efficient cargo handling.

4.Fail-safe brakes on all movements.

5. Equipped with hydraulic oil cooler, it can operate in high temperature environment.

6. Base on many year's experience of crane and harbor equipment.

Structure:

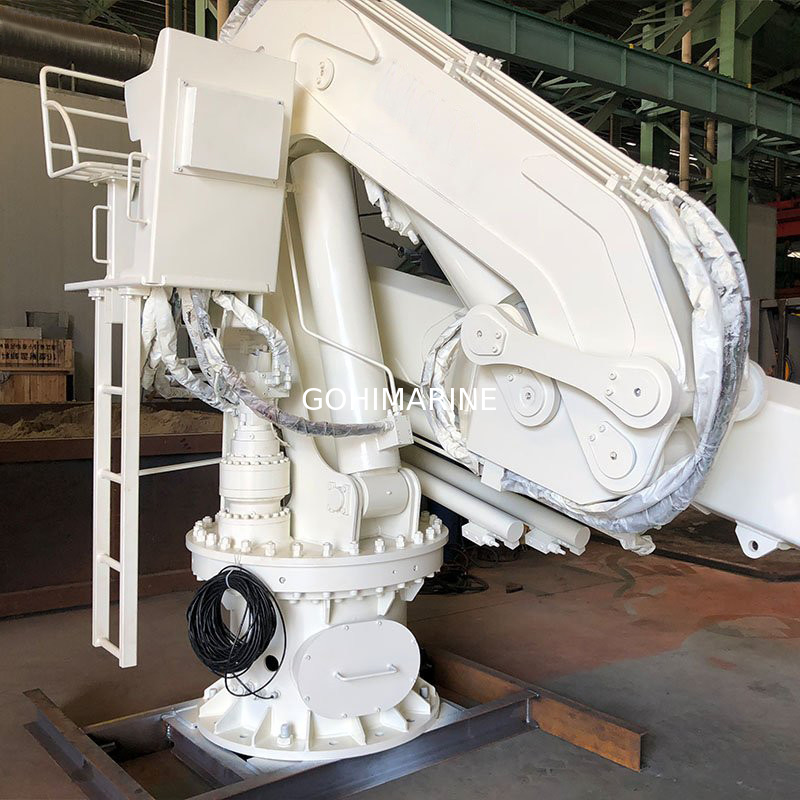

CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane 0

The folding boom telescopic marine crane is a lifting equipment designed specifically for ships, with strong lifting capacity and efficient work efficiency. This crane is fixed to the ship deck through flanges or welding, mainly used for lifting and moving heavy goods, such as ordinary goods, equipment, personnel, etc.

The folding arm telescopic crane adopts advanced hydraulic system, which can achieve accurate control and intelligent operation. It has strong stability and safety, and can operate safely and reliably in harsh working environments.

The crane is made of high-strength steel plates and coated with epoxy zinc rich Jotun paint, which has good durability and corrosion resistance. At the same time, the crane also has a compact structure, which is convenient for maintenance, installation, and repair, and can effectively save time and cost of ship maintenance.

Nodel Working Radius (m) Loading(kg) Lifting Torque Slewing Torque(kNm) Base Size (mm) Slewing Dgree Hydraulic Pressure (bar) Weight(kg)
(kNm)
GCF20 0.6-3.0 500-300 9-15 15 260 400 250 300-380
GCF45 0.8-4.0 1000-500 20-40 45 500 400 250 560-860
GCF80 1.5-6.0 1200-500 30-72 80 500 400 250 650-950
GCF100 4.6-10.8 2200-750 81-95.6 100 620 360 250 1730-2030
GCF120 4.6-10.8 2600-900 97.2-115.5 120 620 360 250 1750-2100
GCF150 4.55-12.85 3280-830 106.6-147.3 150 800 360 250 2120-2500
GCF180 4.55-12.85 3900-1020 131-173.5 180 800 360 250 2270-2750
GCF220 4.4-15 4900-850 128-211 220 900 360 250 3050-3900
GCF270 4.4-15 6100-1100 165-256 270 900 360 250 3600-4340
GCF320 5.35-17.85 5900-1080 192.8-308.7 320 1050 360 250 4950-6200
GCF370 5.35-17.85 6900-1250 223.1-363.8 370 1250 360 250 5300-6800
GCF450 5.5-21.5 8150-1300 279.5-446.6 450 1550 360 250 7800-10500
GCF550 5.5-21.5 9900-1650 354.8-539 550 1550 360 205 8500-11250

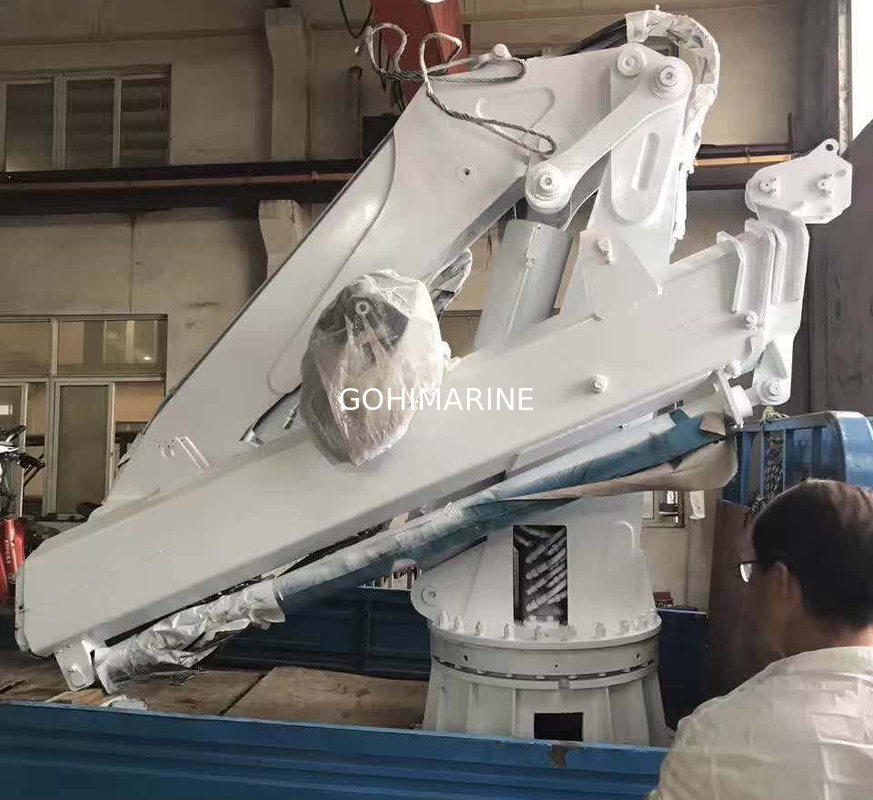

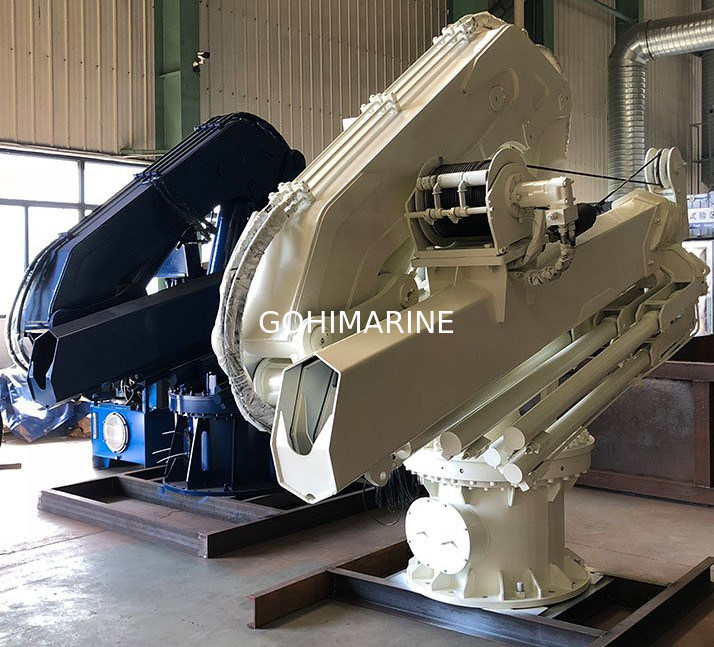

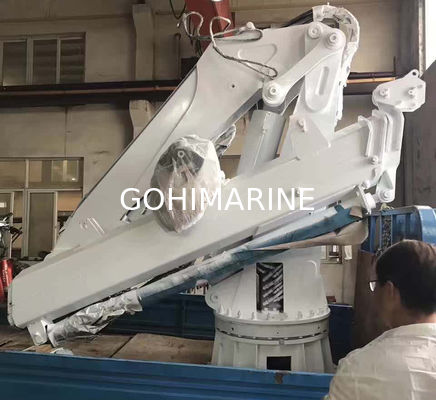

CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane 1CCS, BV, ABS Approved Compact 1-20T Marine Ship Hydraulic Folding Telescopic Crane 2
