CCS, ABS, USCG, DNV-GL, RMRS Approved IMO MEPC.244(66) Standard Marine Waste Incinerator
-
Production StandardIMO MEPC.244(66)
-
Burning Capacity180,000-1290000Kcal/h
-
Power208-1491KW
-
Sludge Capacity22.5-170kg/h
-
Solid Waste Capacity30-140kg/h
-
Incineration ModuleOptional
-
Place of OriginCHINA
-
Brand NameGH
-
CertificationCCS. BV, ABS, DNV-GL, USCG, RMRS
-
Model NumberMarine Incinerator
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsPlywood Box
-
Delivery Time20-60 Days
-
Payment TermsL/C, T/T
-
Supply Ability120 Sets Per Month
CCS, ABS, USCG, DNV-GL, RMRS Approved IMO MEPC.244(66) Standard Marine Waste Incinerator
The CCS, ABS, USCG, DNV-GL, RMRS Approved IMO MEPC.244(66) Marine Sludge Waste incinerator is designed to burn sump oil, sewage, sludge and plastic, paperboard and food wastes produced onboard. It is an important device for the pollution prevention in various ships and offshore platforms. The reliable system consists of high quality sludge tank and fan. Wastes compactor and spark arrestor are option. It is in accordance with following rules and regulation:
- MARPOL73/78 Annex V, type approval and operating limits for shipboard incinerators
- IMO resolution MEPC76(40), adopted on 25 Sept. 1997
- IMO Resolution MEPC93(45), adopted on 5 Oct. 2000
- MARPOL 73/78 Annex VI, Resolution for the Prevention of Air Pollution from ship, adopted on 26 Sept. 1997
And into force on 19 May 2005
and got the approval of EC. CCS, DNV, GL, LR, ABS, USCG and so on. The incinerator meets the latest IMO resolution MEPC.244(66).

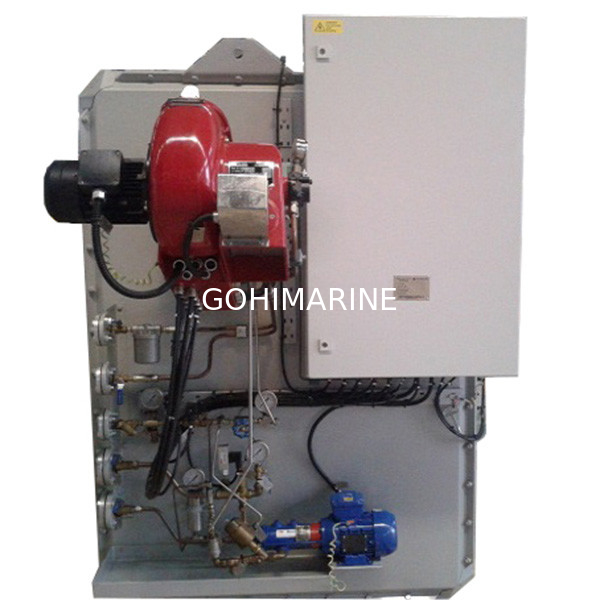

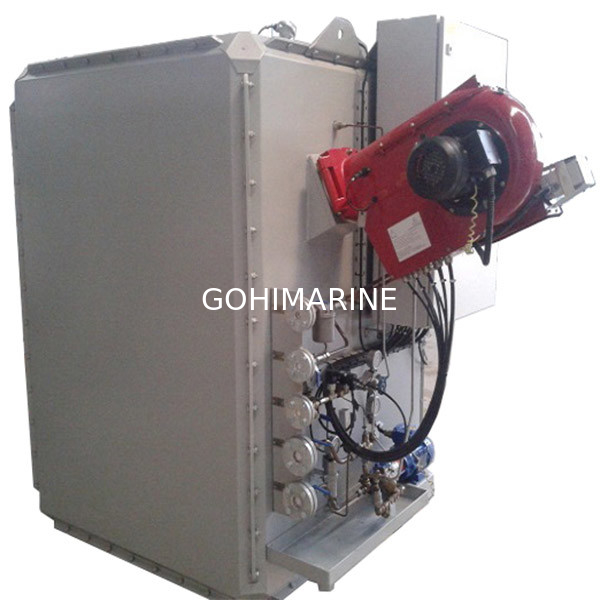

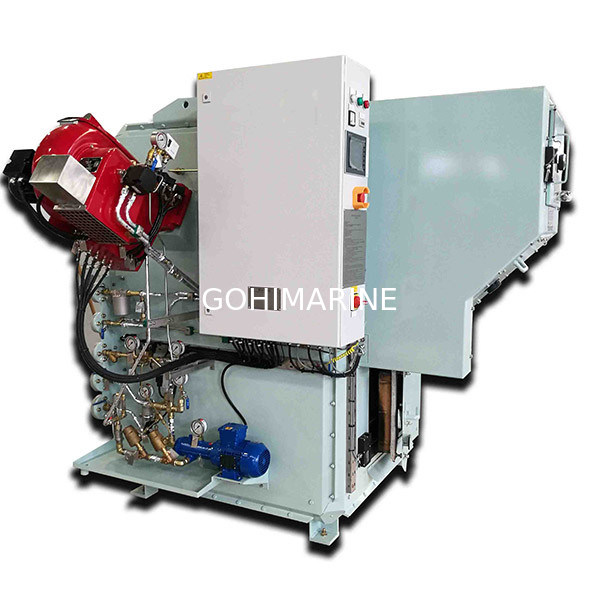

The complete marine incinerator system consists of three main parts:
(a.)Combustion chamber with diesel oil burner, sludge burner, and electric control panel.
(b.) Flue gas fan
(c.) Flue gas damper.
(d.) Sludge tank with circulating pump and heater.
In which, the combustion body includes: Combustion chamber, Burner, Control panel and built-in accessories; The Sludge tank includes heating elements either elec. Heater or steam, thermal oil coil; Circulating pump, level switches etc; The Exhaust gas fan includes flue gas fan, flue gas damper, Expansion bellows.
(1)Man-Machine dialogue interface for convenient operations.
(2)Continuous solid waste loading device with pneumatic control, as an option.
(3)Sludge agitation by a recirculation pump to obtain best mixture.
(4)Three options of sludge heating source, including electrical elements, steam coil or thermal coil.
(5)Immediate working condition traceability.
| Models | INC-18 | INC-50 | INC-50A | INC-80 | INC-100 | INC-130 | |
|
Capacity (kcal/h) |
180,000 | 500,000 | 500,000 | 800,000 | 1,000,000 | 1,290,000 | |
| Power(KW) | 208 | 580 | 580 | 929 | 1162 | 1491 | |
| Sludge(kg/h) | 22.5 | 63 | 63 | 100 | 125 | 170 | |
| Solid Waste | 30kg/Charge | 60kg/charge | 60kg/h | 136kg/h | 140kg/h | 140kg/h | |
| Combustion chamber temperature |
Max. 1180 Celsius degree Working 850-1150 Celsius degree |
||||||
| Flue gas temperature |
Max. 375 Celsius degree Working 250-340 Celsius degree |
||||||
| Surface temperature | Less than ambient temperature +20 Celsius degree, and less than 60°C | ||||||
Features:
▪ Touch screen HMI, Modbus protocol for communication, a key operating automatically
▪ Three heating resource available, steam, electric and thermal oil
▪ Optimized incinerating process, lower fuel consumption
▪ Food waste vacuum collection, incineration module Option
▪ USCG approval
Our products are sold all over the world, you can rest assured.
