IACS Approved IMO MEPC.107(49) Standard Marine 15ppm Oil In Water Bilge Alarm
-
Monitoring Range0-50ppm
-
AccuracyBetter Than 5mg/l
-
DisplayLCD Display
-
LinearityBetter Than 2 %
-
Degree Of ProtectionIP 45
-
StandardIMO.Res.MEPC.107（49）
-
Place of OriginCHINA
-
Brand NameGH
-
CertificationCCS, EC
-
Model NumberOCM 15ppm Bilge Alarm
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsPlywood Box
-
Delivery Time2-7 Days
-
Payment TermsL/C, T/T
-
Supply Ability6000 Sets Per Month

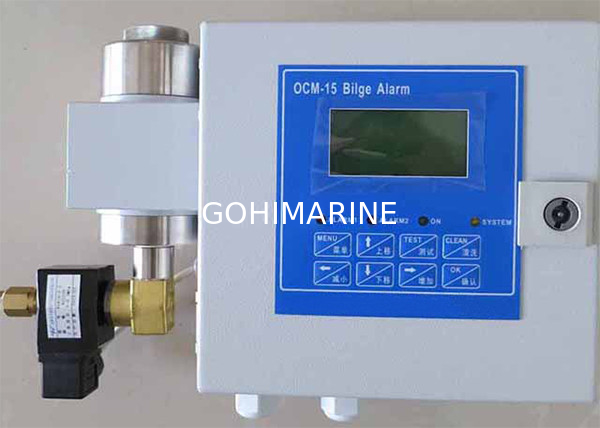

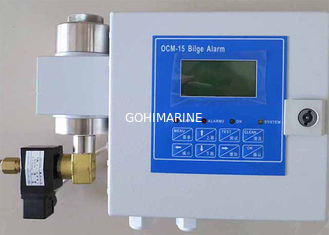

IACS Approved IMO MEPC.107(49) Standard Marine 15ppm Oil In Water Bilge Alarm
The bilge water alarm device has been designed specifically for use in continuous monitoring of oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.
The 15ppm bilge water alarm device use the technology of near infrared measurement, which can display the detected result in real time. The unit is supplied with 2 works-adjusted alarms. The set point (15ppm factory set) could be adjusted at any moment through the panel. If an alarm set point is exceed, the alarms are visible at the front panel and the appropriate relays are switched, that can be achieved the movement control of overrun
closedown or the treatment of overrun recycle, and the memory and enquiry of alarm record. Furthermore, a 4 - 20mA (equal to 0 – 15ppm) effective signal output is available for driving a recorder or external meter.
The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance with the IMO-Resolution MEPC.107 (49).
| Type: | OCM-15 |
| Range: | 0 – 30 mg/l can exceed to 50mg/l |
| Accuracy | Better than 5mg/l |
| Linearity | better than 2 % |
| Display | LCD display |
| Power Supply: | 220VAC/110VAC ± 10% |
| Consumption: | 10 VA |
| Alarm Points: | 1-15ppm |
| Alarm Points works set: | 15ppm |
| Alarm 1 delay | 0-10 second. |
| Alarm 2 delay | 0-10 second |
| Alarm output | Two way relays output |
| Alarm relay output contact value | 5A, 250VAC |
| Alarm relay output feedback signal test | Two way working status contact testing |
| Alarm Indication: | Red LED's |
| Output Signal: | 4 - 20 mA, reversible Ri < 500 Ω |
| Sample Water Pressure: | 0.01 -6 bar |
| Sample Flow: | approx. 0.2 - 4 l/min depend on pressure |
| Ambient Temperature: | 0 to + 55° C |
| Sample Water Temperature: | + 1 to + 80° C |
| Size (over all): | 360 mm W x 240 mm H x 105 mm D |
| Degree of Protection: | IP 45 |
| Weight: | 8kg |
| Pipe Connections: | R 1/4" Female |
| Standard | IMO.Res.MEPC.107(49) |
