CHONGQING GOHI MARINE EQUIPMENT CO., LTD. 86-150-8662-8983 hyindustry@hotmail.com
CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft

CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft

Products - Life Saving Appliance - Life Raft
  • Material
    Rubber, Fabric
  • Production Standard
    SOLAS
  • Capacity
    6-125 Persons
  • Color
    International Orange
  • Type
    Self Righting Inflatable Liferaft
  • Inflating
    Automatically
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, DNV-GL, EC, MED
  • Model Number
    Self Righting Inflatable Life Raft
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box
  • Delivery Time
    5-30 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 Sets Per Month

CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft

  • CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft
  • CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft
  • CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft
Get Price Contact Now

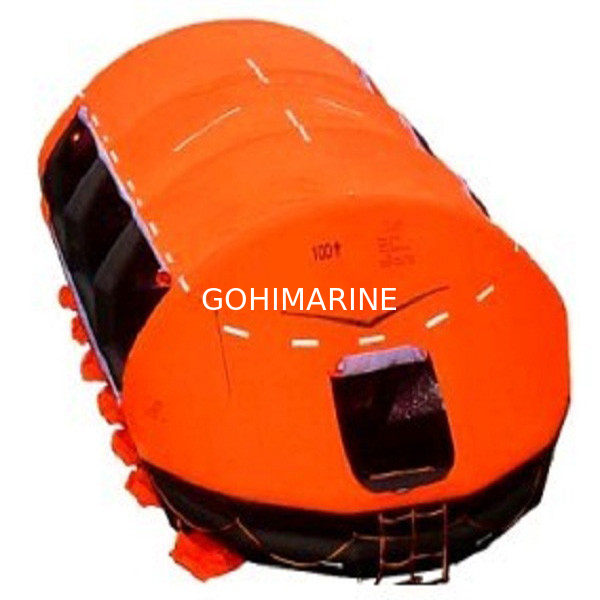

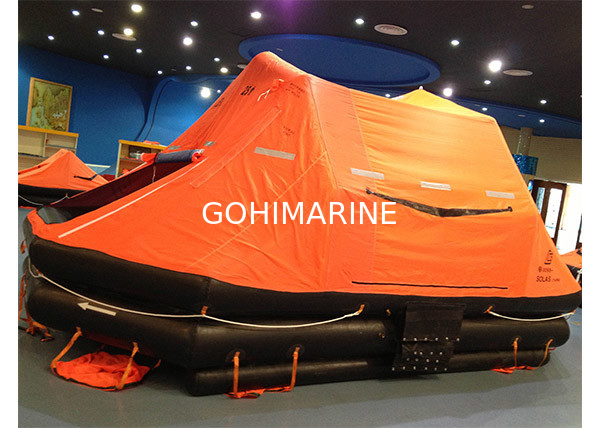

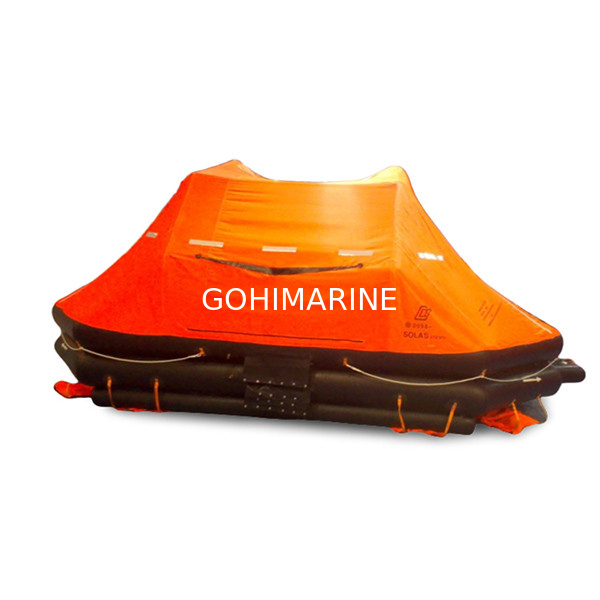

The self righting life raft is made of rubber and fabric. When it is in water after inflating, it can self righting automatically.

The life raft is approved by CCS, DNV-GL (EC/MED) and meets the following standards:
1. Regulation 4,26 & 34, Chapter III of SOLAS 1974, as amended
2. Chapter I and IV of MSC48.(66) International Life-saving Appliance Code (LSA Code) and MSC.218(82),MSC.293(87)
3. Sections V of Parts1; Sections V of Parts 2of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliances and MSC.226(82),MSC.295(87),MSC323.(89)
4. China MSA“Regulations for the Statutory Surveys of Ships and Offshore Installations-Technical Regulations for the Statutory Surveys of Sea-going ships Engaged in Domestic Voyages”2011, Part4, Ch.3 and Revision 2012
It can be used in the ships engaged on international voyages. Type KHZ-50/100/110/125 can be mate with marine evacuation systems.


Type Z-6 Z-10 Z-15 Z-20 Z-25 Z-30 Z-35
physical form rectangular octagon
Carrying capacity (pers) 6 10 15 20 25 30 35
Length(mm) 2800 3510 4300 4900 5300 5640 6240
Width(mm) 1660 2000 2400 2700 3100 3750 3750
Height(mm),±50 1500 1700 2050 2250 2350 2650 2650
Working pressure of buoyancy tube, kPa 15.96 15.96 15.96 15.96 15.96 15.96 15.96
Specification of 3×2 4×2 6×2 9×2 10×2 18×2 18×2
cylinder (L)×Quantity
Gas Weight (g) CO2 1700 2400 3600 5600 6200 10000 10000
N2 160 200 250 400 400 1000 1000
Water pockets Quantity 4 4 6 7 9 11 13
Total volume, L 229 229 343 400 515 629.2 743.6
Weight,kg ≤ 85 114 142 180 212 315 330



Type Z-50 Z-65 Z-100 Z-110 Z-125 Z-130
physical form rectangular dodecagon
Carrying capacity (pers) 50 65 100 110 125 130
Length(mm) 7311 8960 11060 11550 12000 12080
Width(mm) 4240 4240 5260 5600 6100 6100
Height(mm) 3000 3000 3250 3450 3650 3650
Working pressure of buoyancy tube, kPa 20 20 20 20 20 20
Specification of 22×2 22×2/18×1 22×2/18×2 22×4 22×4/18×1 22×4/18×1
cylinder (L)×Quantity
Gas Weight (g) CO2 13500 13500/10000 13500/10000 13500 13500/10000 13500/10000
N2 1500 1500/1000 1500/1000 1500 1500/1000 1500/1000
Water pockets Quantity 6 8 12 14 15 16
Total volume, L 1008 1344 2016 2352 2520 2688
Weight,kg ≤ 410 530 780 860 920 935



CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft 0CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft 1CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft 2CCS, DNV-GL, EC, MED Approved SOLAS 6-125 Persons Self Righting Inflatable Life Raft 3
