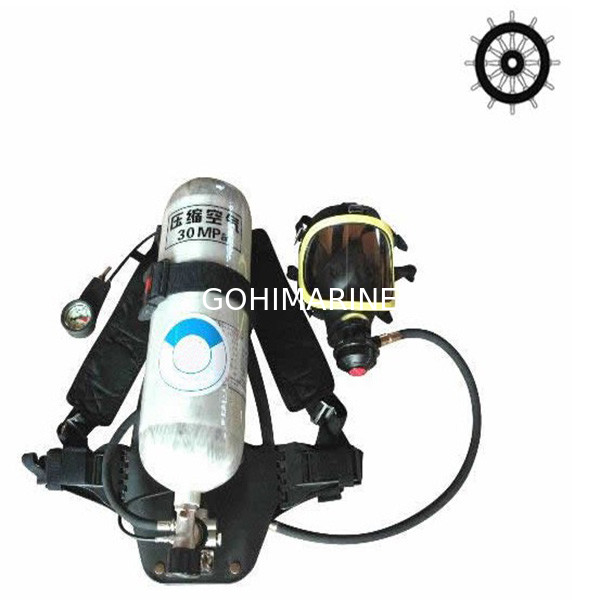

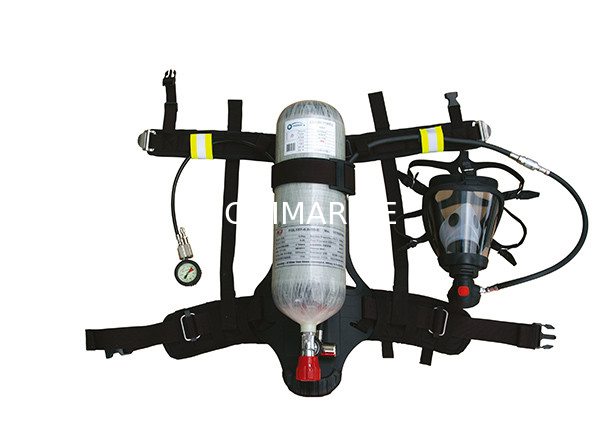

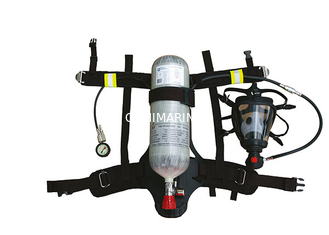

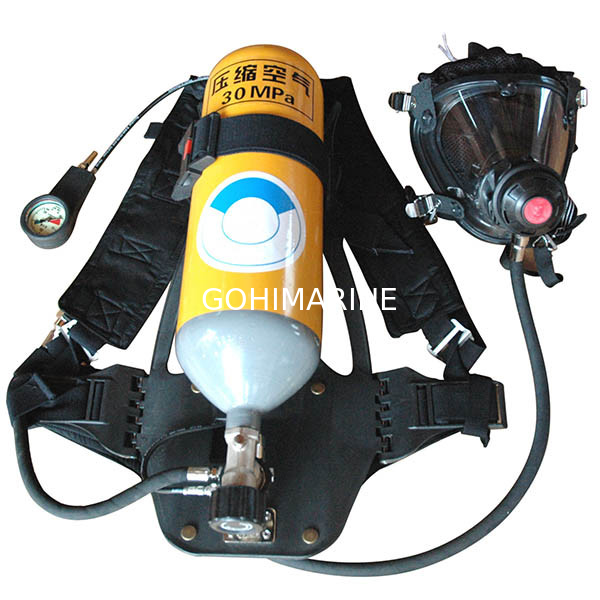

SOLAS 300Bar Carbon Fiber Marine Self Contained Breathing Apparatus

RHZK positive pressure fire-fighting air respirator is a model of self supporting open respirator, which is widely used in fire-fighting ,chemistry industry,fired boat,petroleum industry,smelt,mine and transportation. It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke,pollution,hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.

a. The atmosphere is polluted by smoke,poisonous gas or/and hot vapor, or in the hypoxygen situation.

b. In the atmosphere of -30℃～＋60℃, at 0~100% relative humidity and 70KPa～125 KPa atmosphere pressure.



The SOLAS 300Bar marine self contained breathing apparatus is approved by CCS, DNV-GL(EC/MED). It meets the following standards:

SOLAS ii-2 Reg.10, 1994 HSC Code Ch.7, 2000 HSC Code, Ch.7 FSS Code, CH.3.2.1.2

EN 137:2006

EN136:1998 including AC:2003



Model	Working Pressure (Mpa)	Cylinder Volume (L)	Cylinder Air Deposit (L)	Working Time (Min)	Alarm Pressure (Mpa)	Weight (kg)	Packing Size (mm)
RHZK 5/30	30	5	1500	40~50	5.5±0.5	≤18	755×460×310
RHZK 6/30	30	6	1800	50~60	5.5±0.5	≤20	755×460×310
RHZKF 6.8/30	30	6.8	2040	50~60	5.5±0.5	≤16	755×460×310
RHZKF 9/30	30	9	2700	80-90	5.5±0.5	≤18	755×460×310
