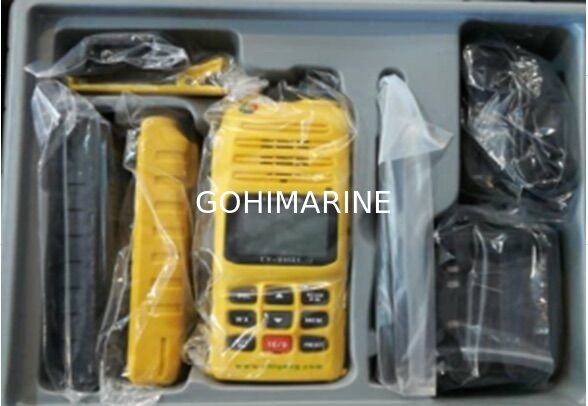

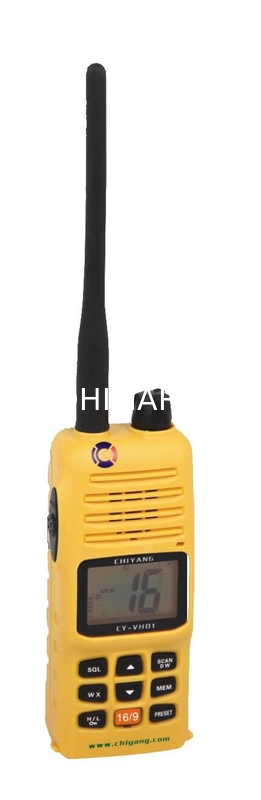

CCS Approved IMO Standard GMDSS Handle Held Maritime Very High Frequency VHF Radio
-
Frequency Range154-163Mhz
-
Channel Spacing25Khz
-
RF Output Power1W (Lo) /5W (Hi)
-
CertificateCCS
-
StandardIMO
-
Place of OriginCHINA
-
Brand NameGH
-
CertificationCCS
-
Model NumberCY-VH01
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsCarton (56*133*275mm)
-
Delivery Time5-10 Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability10000 Sets Per Month
CCS Approved IMO Standard GMDSS Handle Held Maritime Very High Frequency VHF Radio
The very high frequency VHF is the GMDSS system important component and it is radio equipment that mainly used in communication between people with risks and nearby rescue groups. It can use all VHF channels that are assignment for the international marine mobile service.
When the emergency encounters to be possible transmits the distress signal to other ships or the sea patrol leader in 16 channels.
| Frequency Range | 154-163Mhz |
| Channel Spacing | 25kHz |
| Operating Temperature | -20c to 55c |
| Sensitivity | 0.35uV for 12 dB SINAD |
| RF Output Power | 1W(Lo) / 5W(Hi) |
| Adjacent Channel Power | >70dB |
| Blocking | >90dB |
| Spurious Response | >70dB |
| Harmonic Distortion | <5% |
| Inter Modulation Rejection | >68dB |
| Frequncy Error | <+1.5kHz |
| Case Size(W * H * D) | 2.20"*5.24"*1.08"(56*133*275MM) (w/o knob & antenna) |
| Weight (Approx.) | 280g |
