IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch

IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch

Products - Marine Deck Machinery - Marine Winches - Marine Hydraulic Winches
  • Material
    Stainless Steel
  • Color
    Customized
  • Load Capacity
    10-150T
  • Working Speed
    10m/min
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
  • Model Number
    Hydraulic Winch
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Pallet
  • Delivery Time
    5-60 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 Sets Per Month

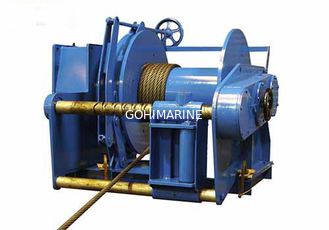

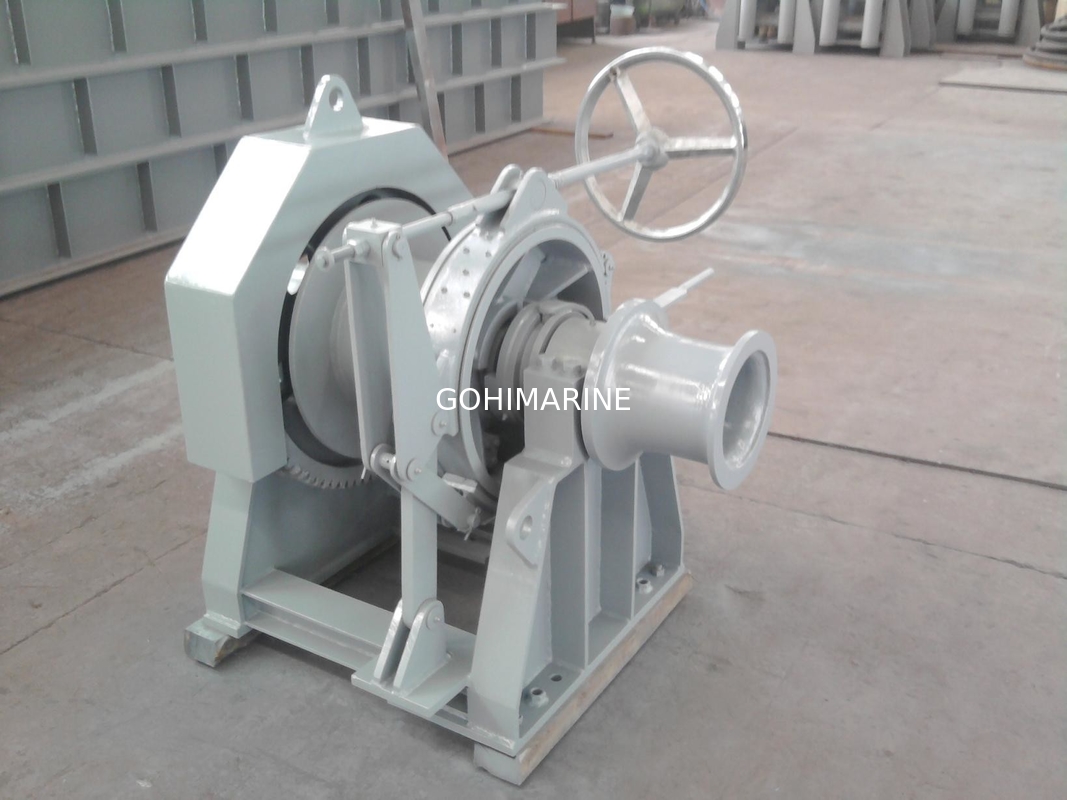

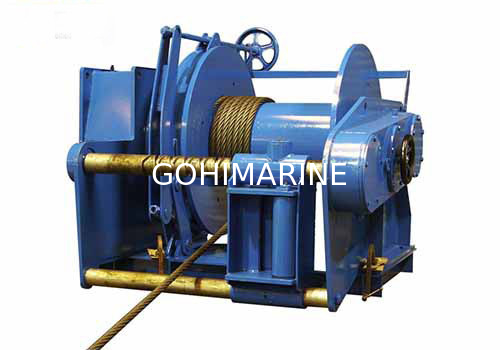

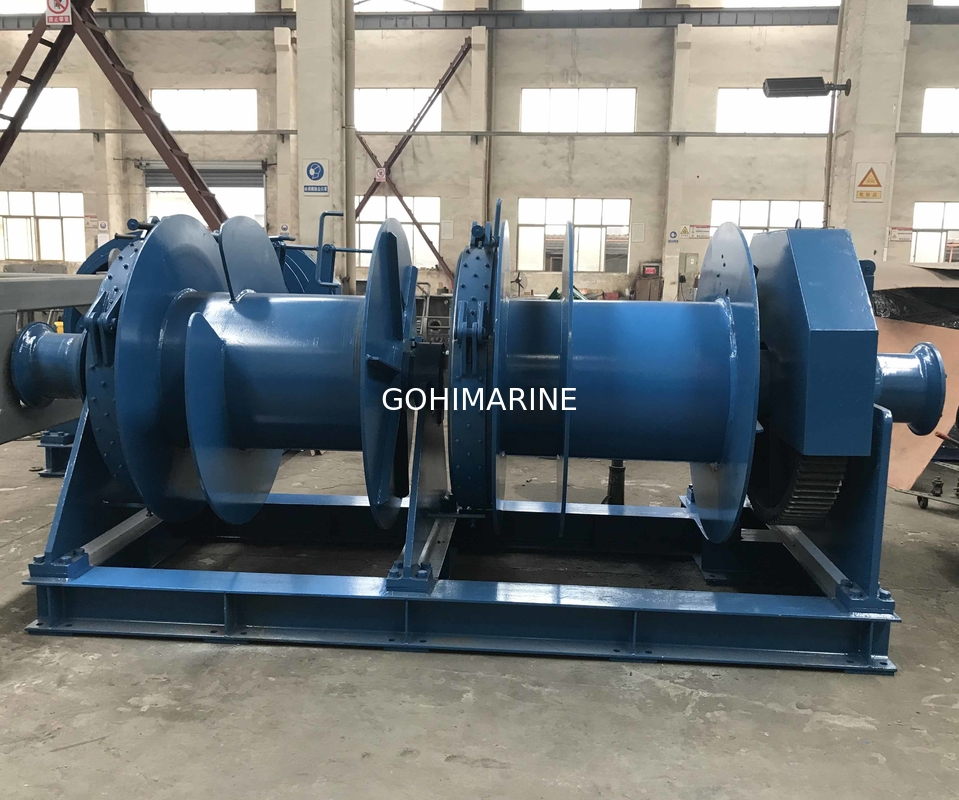

IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch

  • IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch
  • IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch
  • IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch
Get Price Contact Now



MARINE HYDRAULIC WINCHES are approved by CCS, BV, ABS, DNV-GL, LR, NK, RMRS, IRS, RINA etc



Hydraulic winch driven by hydraulic motor and HPU can start smoothly.

It will not gave impact to power supply system while start.

It can fulfil stepless speed control by hydraulic proportional valve.

IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch 0



Model Drum Load (KN) Nominal Speed (m/min) Holding Load (KN) Dia. Of Rope (mm) Capacity Of Rope (m)
GH-30 30 15 90 16 150
GH-40 40 15 120 18 150
GH-50 50 15 150 20 180
GH-75 75 15 220 26 180
GH-80 80 15 240 26 200
GH-100 100 15 300 28 200
GH-125 125 15 310 30 200
GH-150 150 15 450 32 250
GH-160 160 15 470 32 250
GH-200 200 9.6 590 40 250
GH-250 250 9.6 730 44 250
GH-315 315 7.8 940 52 250
GH-350 350 7.8 1050 54 250
GH-400 400 7.8 1080 56 250



IACS Approved 10T-150T Marine Single Drum, Double Drum Hydraulic Winch 1

Marine winches can be divided into four types according to their driving methods: manual winches, electric winches, pneumatic winches, and hydraulic winches.

According to the purpose, it can be divided into marine and land use.

The working voltage of electric winch: 380V, 220V, 110V are high voltage. 36V, 24V, 12V are low voltage (12V is direct current. 220V is alternating current) electric winches are the most common winches. Relying on the vehicle's own electric system to drive the winch, advantages: it can be used normally when the vehicle is dead fire (this is its biggest advantage, which is unmatched by other winches), especially for watery areas, it has great advantages, and the installation is simple. Realize multi-position installation and rapid displacement. Disadvantages: Can not maintain long-term use (the limitation of the vehicle's own electric system, self-heating, etc.), most electric winches can provide small driving force, and can only apply force in one direction (installed in the front of the car can only Pull forward, install on the rear can only be pulled backward).



Hydraulic winches are divided into medium and low pressure (for bulk carriers with a pressure of 50-70kg), medium pressure (pressure greater than 70kg), and high pressure (pressure greater than 150kg) according to the pressure. The advantage is large power and stable operation.



Marine winches are divided into vertical, horizontal and inverted types according to the installation situation.
