IACS Approved 8-125KN Marine Electric Ship Anchor Windlass

IACS Approved 8-125KN Marine Electric Ship Anchor Windlass

Products - Marine Deck Machinery - Marine Windlass - Marine Electrical Windlass
  • Material
    Stainless Steel
  • Color
    Customized
  • Load Capacity
    8-125KN
  • Working Speed
    9m/min
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
  • Model Number
    Hydraulic Windlass
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Pallet
  • Delivery Time
    5-60 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 Sets Per Month

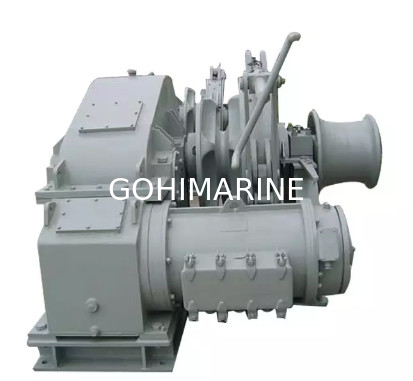

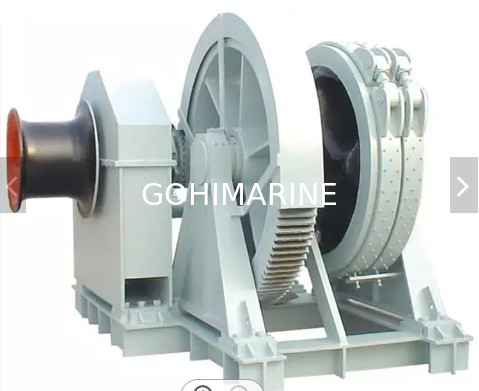

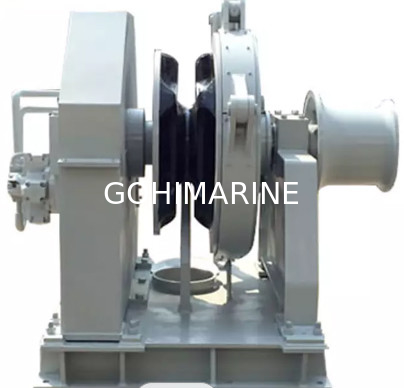

IACS Approved 8-125KN Marine Electric Ship Anchor Windlass

  • IACS Approved 8-125KN Marine Electric Ship Anchor Windlass
  • IACS Approved 8-125KN Marine Electric Ship Anchor Windlass
  • IACS Approved 8-125KN Marine Electric Ship Anchor Windlass
Get Price Contact Now



The electric marine anchor windlass are approved by CCS, BV, ABS, DNV-GL, LR, NK, RMRS, IRS, RINA etc



Electric windlass is applies to anchor chain diameter 12.5mm-78mm.

It can be driven by electric motor.

Single, double , triple speeds or VFD motor are available.

IACS Approved 8-125KN Marine Electric Ship Anchor Windlass 0



Model Dia. Of Chain (mm) Working Load (KN) Overload Pulling (KN) Holding Load (KN) Nominal Speed (m/min) Warping Load (KN)
AM2 AM3 AM2 AM3 AM2 AM3
GH-17.5 17.5 13 14.6 19.5 21.9 80 115 9 8
GH-19 19 15.3 17.2 23 25.8 95 135 9 10
GH-20 20 17.9 20 26.9 30 110 157 9 10
GH-22 22 20.6 23 30.9 34.5 126 180 9 15
GH-24 24 24.5 27.4 36.8 41.1 149 214 9 20
GH-26 26 28.7 32.1 43.1 48.2 175 250 9 20
GH-28 28 33.3 37.2 50 55.8 202 289 9 20
GH-30 30 38.3 42.8 57.5 64.2 231 330 9 30
GH-32 32 43.5 48.6 65.3 72.9 261 374 9 30
GH-34 34 49.1 54.9 73.7 82.4 294 421 9 30
GH-36 36 55.1 61.6 82.7 92.4 329 470 9 30
GH-38 38 61.4 68.9 92.1 103.4 365 522 9 40
GH-40 40 68.0 76 102 114 402 576 9 40
GH-42 42 75.0 83.8 112.6 125.7 442 632 9 50
GH-44 44 82.3 92 125.5 138 483 691 9 50
GH-46 46 89.9 100.5 134.9 150.8 526 753 9 50
GH-48 48 97.9 109.4 146.9 164.1 570 816 9 50
GH-50 50 106.3 118.8 159.5 178.2 617 882 9 50
GH-52 52 114.9 128.4 172.4 192.6 664 950 9 80
GH-54 54 123.9 138.5 185.9 207.8 713 1021 9 80
GH-56 56 133.3 149 200 223.5 764 1093 9 80
GH-58 58 143.0 159.8 214.5 239.7 816 1168 9 80
GH-60 60 153.0 171 229.5 256.5 870 1245 9 80
GH-62 62 163.4 182.6 245.1 273.9 925 1324 9 100
GH-64 64 174.1 194.6 261.2 291.9 982 1405 9 100
GH-66 66 185.1 206.9 277.7 310.4 1040 1488 9 100
GH-68 68 196.5 219.6 294.8 329.4 1098 1573 9 100
GH-72 70 208.3 232.8 312.5 349.2 1160 1660 9 100
GH-73 73 226.5 253.1 339.8 379.7 1254 1794 9 125
GH-76 76 245.5 274.4 368.3 411.6 1350 1932 9 125
GH-78 78 258.6 289 387.9 433.5 1416 2026 9 125

IACS Approved 8-125KN Marine Electric Ship Anchor Windlass 1

Marine windlass is a mechanism for lifting and anchoring an anchor, and is also used as a mooring rope.



China's regulations have the following requirements for windlass:



1,Windlass shall be driven by independent prime mover



2,The rated tension of windlass shall be no less than 41.68d2N(4.25D2kGF), and when D<25mm, the rated tension shall be no less than 36.8d2n (3.75d2DGF). D is the chain diameter and the unit is mm.The average anchor speed should be no less than 9m/min when the rated tension is used.



3,The windlass shall be able to work continuously for 30min under rated tension and rated speed, and shall be able to work continuously for 2min under the action of overload tension not less than 1.5 times rated tension;In addition, the windlass should be equipped with overload protection device, which can be turned to medium speed when overloaded.



4,The brake device on the chain wheel of windlass shall work reliably, and can brake the anchor chain with the breaking load of 45% (when the free anchoring speed reaches 5~7.5m/s, there will still be a brake on the sliding anchor chain);A clutch shall be arranged between the chain wheel of windlass and the load shaft;Brake and clutch should be operated conveniently and reliably;Windlass operation should be able to turn smoothly and smoothly and quickly.



5,The installation of windlass shall ensure that the three eyes (hawser, chain maker, and sprocket) are in a line when the anchor chain is drawn out.



The hydraulic windlass is also called electric hydraulic windlass. It uses the motor to drive the oil pump, the high-pressure oil to drive the motor, and then the reducer (or no reducer) to drive the transmission gear to make the windlass run. Its structure is compact and its volume is small. Now there is an automatic hydraulic windlass, which is equipped with an anchor chain length sensor. When all the anchor chains need to be thrown out, the windlass will automatically stop; When the anchor is about to approach the hawse pipe, it can automatically slow down; The anchor shaft will stop automatically when it is put into the hawse pipe
