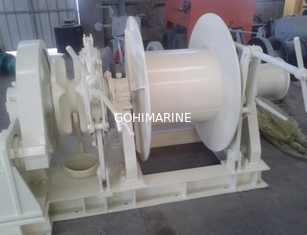

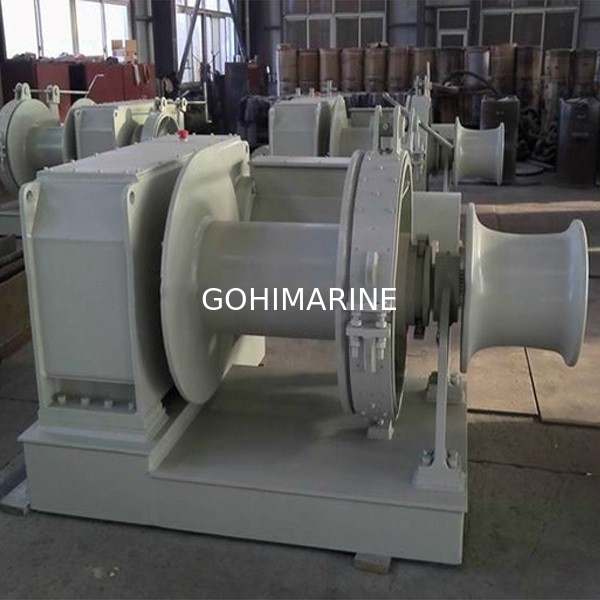

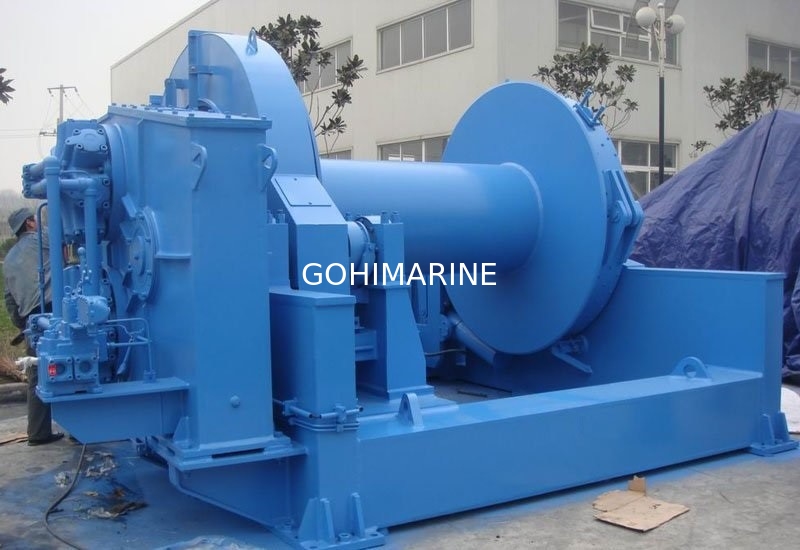

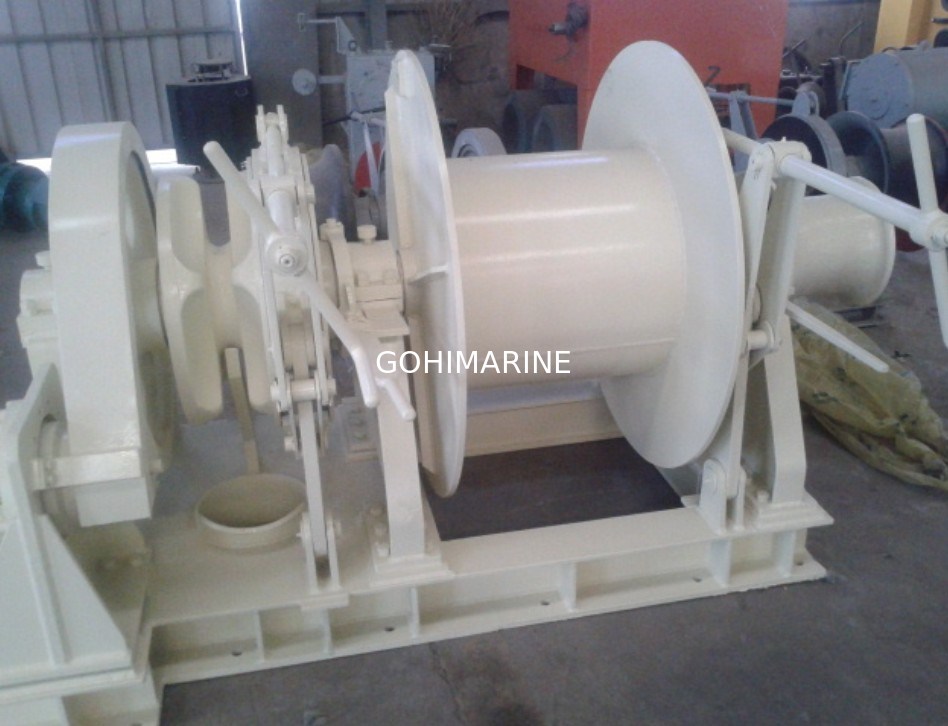

IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch

IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch

Products - Marine Deck Machinery - Marine Windlass - Marine Electrical Windlass
  • Material
    Stainless Steel
  • Color
    Customized
  • Load Capacity
    10-80KN
  • Working Speed
    9m/min
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
  • Model Number
    Electric Combined Windlass And Winch
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Pallet
  • Delivery Time
    5-60 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 Sets Per Month

IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch

  • IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch
  • IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch
  • IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch
Get Price Contact Now



Marine Electric Combined Windlass and moorning winch are approved by CCS, BV, ABS, DNV-GL, LR, NK, RMRS, IRS, RINA etc



By combining windlass and winch, equipment can fulfil anchoring and mooring functions.

Following arrangement can be chosed:

-Combined windlass winch with with single gypsy and single mooring drum

-Combined windlass winch with double gypsy and single mooring drum

-Combined windlass winch with single gypsy and double mooring drum

-Combined windlass winch with double gypsy and double mooring drum

-Single warping end, double warping end or without warping end is optional

IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch 0

Model Dia. Of Chain (mm) Working Load (KN) Overload Pulling (KN) Holding Load (KN) Nominal Speed (m/min) Drum Load (KN) Nominal Speed (m/mim) Rope Capacity (m) Warping Load (KN)
AM2 AM3 AM2 AM3 AM2 AM3
GH-17.5 17.5 13 14.6 19.5 21.9 80 115 9 10 10 100 8
GH-19 19 15.3 17.2 23 25.8 95 135 9 15 10 100 10
GH-20 20 17.9 20 26.9 30 110 157 9 20 10 100 10
GH-22 22 20.6 23 30.9 34.5 126 180 9 20 15 100 15
GH-24 24 24.5 27.4 36.8 41.1 149 214 9 20 15 100 20
GH-26 26 28.7 32.1 43.1 48.2 175 250 9 20 10 100 20
GH-28 28 33.3 37.2 50 55.8 202 289 9 20 10 120 20
GH-30 30 38.3 42.8 57.5 64.2 231 330 9 30 10 120 30
GH-32 32 43.5 48.6 65.3 72.9 261 374 9 30 9 120 30
GH-34 34 49.1 54.9 73.7 82.4 294 421 9 40 9 120 30
GH-36 36 55.1 61.6 82.7 92.4 329 470 9 40 12 120 30
GH-38 38 61.4 68.9 92.1 103.4 365 522 9 40 15 150 40
GH-40 40 68.0 76 102 114 402 576 9 40 9 150 40
GH-42 42 75.0 83.8 112.6 125.7 442 632 9 40 15 150 50
GH-44 44 82.3 92 125.5 138 483 691 9 50 15 200 50
GH-46 46 89.9 100.5 134.9 150.8 526 753 9 50 18 200 50
GH-48 48 97.9 109.4 146.9 164.1 570 816 9 60 10 200 50
GH-50 50 106.3 118.8 159.5 178.2 617 882 9 80 15 200 50

IACS Approved 10-80KN Marine Electric Combined Anchor Windlass And Mooring Winch 1

The combination of the windlass and the mooring winch is the anchor mooring combination machine, which can be in the form of single anchor chain wheel single drum and double anchor chain wheel double drum, single anchor chain wheel double drum and double anchor chain wheel single drum.
