IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit

IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit

Products - Life Boat And Davit - Lifeboat Davit
  • Material
    Stainless Steel
  • Application
    Lifeboat Launching
  • Working Load
    55-145KN
  • Standard
    SOLAS
  • Winch Type
    Hydraulic Winch
  • Installation Height
    12-36m
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA, EC, MED
  • Model Number
    Free Fall Lifeboat Launching Appliance
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Naked In 40"FR
  • Delivery Time
    20-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    120 Sets Per Month

IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit

  • IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit
  • IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit
  • IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit
Get Price Contact Now

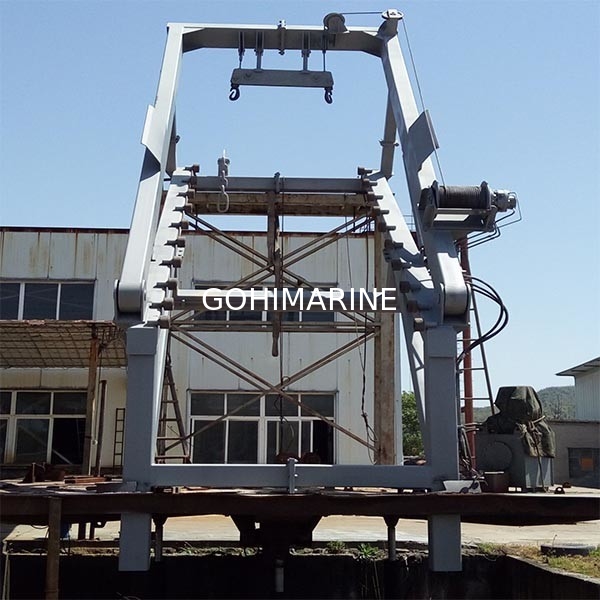

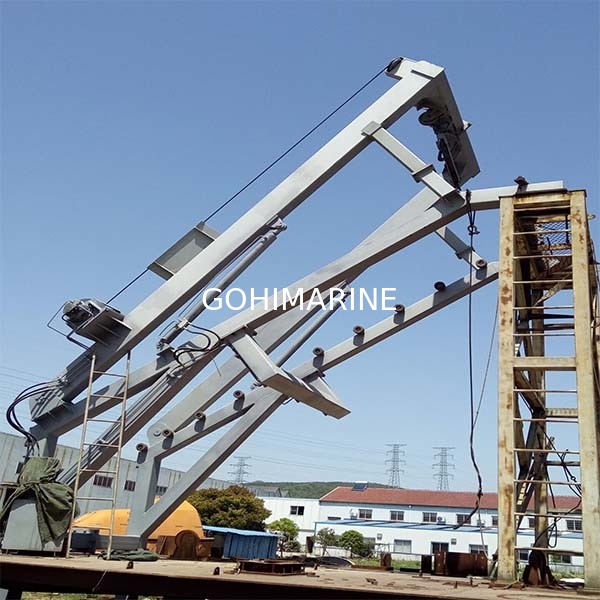

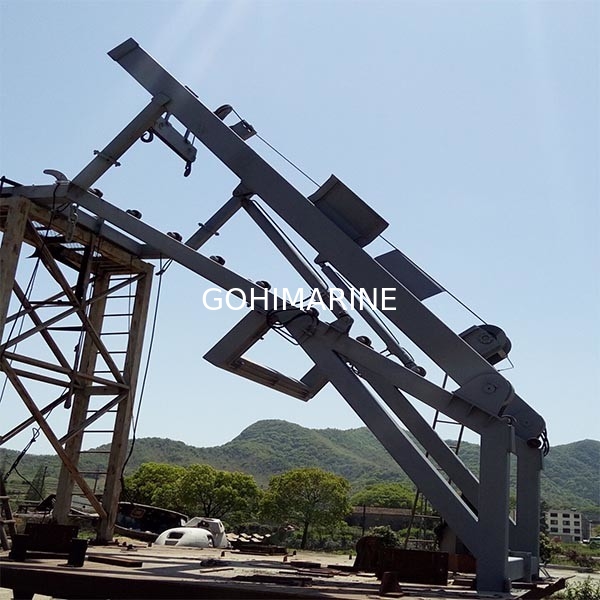

The launching appliance for free-fall lifeboat are specialized equipment for launching and recovering free-fall lifeboats. The appliance has completely changed the traditional way of launching lifeboats with boat fall from both sides of the ships. Instead, the lifeboats free fall into sea water from the slide of the appliance deviating from the course of the mother ships so that the ability of evacuating the ships in distress will increase. The appliance is the life saving and escape system which is the safest and more reliable internationally, the superiority of which in performance has been recognized by more and more shipowners.

The davit is composed of slide, hydraulic winch.

It meets the following requirements:

SOLAS 74 as amended, Reg III/4, X/3, III/21, III/31, III/34
IMO Res. MSC.48(66) amended by MSC.207(81), MSC.218(82), MSC.272(85), MSC.293(87), MSC.320(89) I, IV
IMO Res.MSC.36(63)-(1994 HSC Code)- Res.MSC.97(73) -(2000 HSC Code)- as amended, 8
IMO Res. MSC.81(70) amended by MSC.200(80), MSC.226(82), MSC.274(85), MSC.295(87), MSC.321(89), MSC.323(89)
IMO MSC/Circ.980, Circ.1006, Circ.1423
The davit had been approved by CCS, BV, ABS, DNV-GL, EC, MED.
The lifeboat can freely fall into water by opening the release mechanism from a position w ithin the life boat against a trim of up to 10 degree and a list of up to 20 degree.
The launching appliance is also cap able of pushing the fully laden lifeboat to full outboard position through the hydraulic cylinder &lower the lifeboat to water surface by the hydraulic winch against a trim of up to 2 degree and a list of up to 5 degree.
The launching appl iance may recover the lifeboat with 4 persons to stowed position from water surface when the ship is on even keel.

Model S.W.L(KN) Matched Lifeboat
FL55 55 49/59FC/FF
FL70 70 67FC/FF
FL790 90 85FC/FF
FL145 145 109FC/FF



IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 0IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 1IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 2IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 3IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 4IACS Approved SOLAS Standard Free Fall Lifeboat Launching Appliance Davit 5
