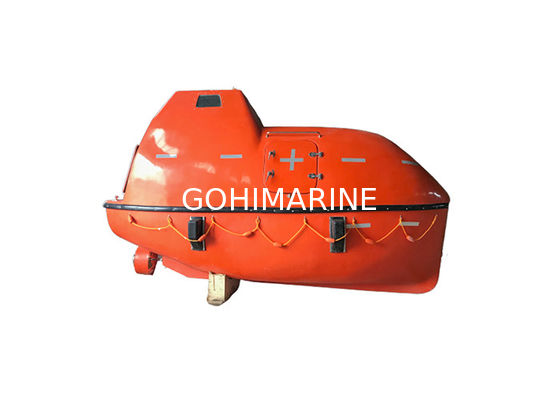

SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC

SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC

  • Standard
    SOLAS
  • Material
    Fiber Glass Plastic
  • Capacity
    16-150 Persons
  • Color
    Orange
  • Application
    Life Saving
  • Engine
    Diesel Engine
  • Speed
    6 Knots
  • Type
    Fire Resistant
  • Compressed Air System
    Including
  • Water Spray System
    Including
  • Place of Origin
    CHINA
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, RMRS, LR, RINA
  • Model Number
    Lifeboat
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Naked In Containers
  • Delivery Time
    20-60 Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets Per Month

SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC

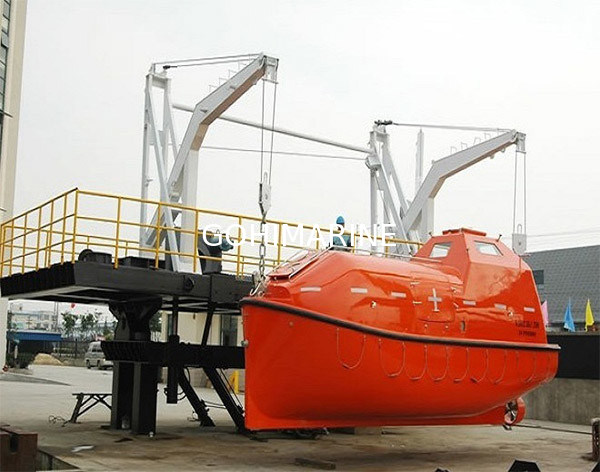

SOLAS Approved Totally Enclosed Motor Propelled Survival Craft TEMPSC is mainly used for tanker ships, oil tanker, LNG, Oil Platform, etc special ships and working area on the sea. It can be raised and loaded by gravity luffing arm type davit and Platform Davit
It is suitable in worse sea condition, for example the ocean boat, it is highly Fire-Resistant.
Comply with the requirement and rules of SOLAS and amendment 1996,LSA Code,MSC.218(82),
MSC.272(85),MSC.320(89)&MSC.81(70),MSC.226(82),MSC.274(85),MSC.321(89)
Boat Body material:Fire-Retardant type FRP
It can self-righting by itself when capsized.

Totally enclosed motor propelled survival craft is made of FRP (Fiber Glass Reinforced Plastic), which is light weight, high strength, durable and sea water corrosion resistant. The lifeboat is self-righting and powered by diesel engine with speed over 6knots for emergency life saving. It is mandatory for SOLAS to install on the sea-going vessels.
Certification:CCS/BV/ABS/EC/NK/RS Fiberglass Totally Enclosed Lifeboat
SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC 0
SOLAS Approved Totally Enclosed Motor Propelled Survival Craft TEMPSC Main Features:
1. Comply with the requirmrns and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82), MSC.272(85), MSC.320(89)& MSC.81(70) , MSC.226(82), MSC274(85), MSC321(89);
2. Boat body material: fire- pretended type FRP;
3. Fit the self-righting device. It can self-righting by itself when capsized;
4. Fit the off-load release mechanism with the safety pin;
5. Equipment is equipped according to SOLAS requirment;
6. The surface for walking is the antiskid;
7. Equip a manual pump remove the ponding in the boat;
8. Rubber fender is fitted around the boat;
9. The deck can self-motion drainage;
10. Running time of rescue boat when full-loaded & full-speed is more than 4 hours.

SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC 1

SOLAS Approved Totally Enclosed Motor Propelled Survival Craft TEMPSC is Suitable for: *Various oil platforms *FPSO *Bulk-cargo Ship or Chemical Cargo Ship *LNGC *Various Working Ships *Maritime Training Center We understand the client's demand,even if you need the lifeboat with 100Kg of per person,we can also design elaborately for you,make the totally enclosed lifeboat which meets your expectation.
SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC 2
Main Features Of Lifeboat
Design and test based on the latest IMO/SOLAS Rules(MED 96/98 EC) Cargo Version and tanker Version to meet different demands New hooks according to MSC.320(89) & MSC.321(89) Seat design can meet the weight of 100Kg per person Max. Capacity of 150 persons lifeboat is also available for your choice
Comparing to the normal lifeboat, the SOLAS Approved 26Persons Fire Resistant Totally Enclosed Life Boat For Tanker Version usually are installed with compressed air system and water curtain system.
SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC 3


Fiberglass Totally Enclosed Motor Propelled Survival Craft TEMPSC Lifeboat Technical Parameters:



Type Dimension Capacity Hook Distance Depth Weight Full load Speed Engine
GLB50C/F 5*2.3*2.84m 10- 25 4.5m 1.0m 2115/2457kg 4260/4602 ≥6 380J-3 / Other brand engine
GLB57C/F 5.8*2.32*3.1m 26-33 5.3m 1.15m 2284/2262kg 5006/5344 ≥6
GLB65C/F 6.6*2.32*3.1m 34-40 6.1m 1.15m 2861/3136kg 6161/6436 ≥6
GLB75C/F 7.6*2.78*3.1m 41-55 7.1m 1.2m 3000/3300kg 7537/7857 ≥6
GLB80C/F 8.0*2.96*3.1m 56-65 7.6m 1.2m 3125/3500kg 8487/8862 ≥6
GLB85C/F 8.5*3.3*3.3m 66-90 8.1m 1.25m 4361/4691kg 11786/12116 ≥6
GLB93C/F 9.3*3.45*3.35m 91-106 8.9m 1.3m 5160/5461kg 13810/14220 ≥6
GLB99C/F 10.05*3.8*3.45m 107-120 9.4m 1.25m 6050/6500kg 15950/16400kg ≥6
GLB102C/F 10.28*3.5*3.35m 121-130 8.95m 1.3m 5658/5960kg 15375/15775kg ≥6
GLB117C/F 11.7*3.55*3.4m 131-150 11.3m 1.3m 5317/5617kg 18190/18600kg ≥6
Note: F: TANKER VERSION C: CARGO VERSION

SOLAS Approved FRP 26Persons Tanker Ships Totally Enclosed Motor Propelled Survival Craft TEMPSC 4
