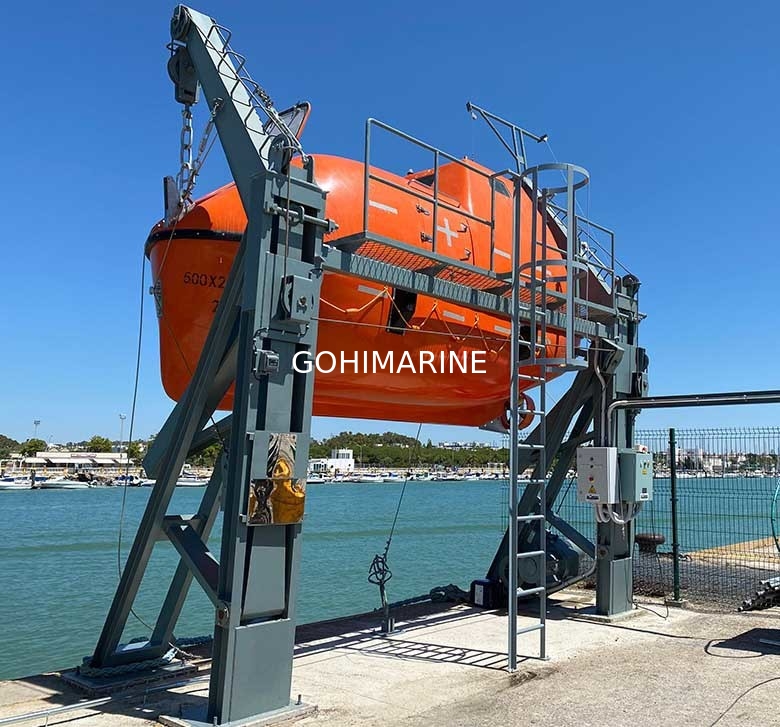

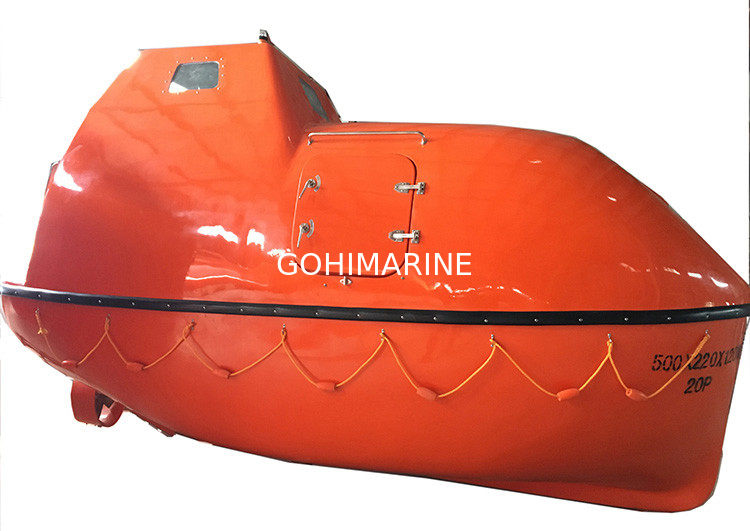

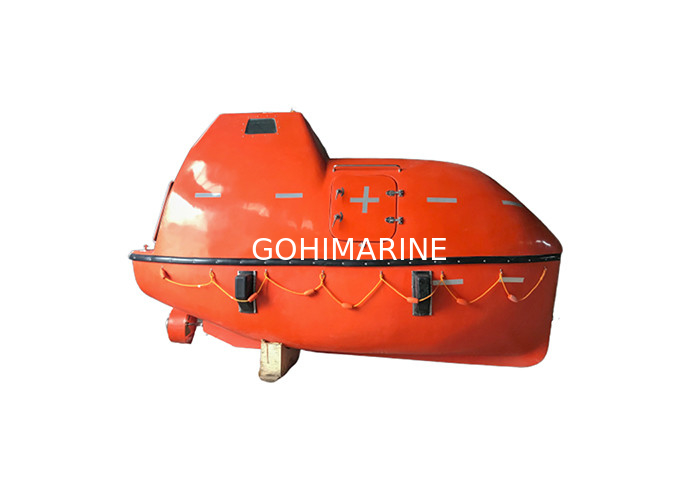

IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat

IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat

Products - Life Boat And Davit - Lifeboat
  • Standard
    SOLAS
  • Capacity
    36 Persons
  • Material
    Glass Fiber Reinforced Plastics
  • Length
    6.5m
  • Version
    Cargo Version, Tanker Version
  • Color
    International Orange
  • Launching Davit
    Gravity Luffing Arm Type Davit, Platform Davit
  • Place of Origin
    China
  • Brand Name
    GH
  • Certification
    CCS, BV, ABS, DNV-GL, EC, MED, RMRS
  • Model Number
    Life Boat
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    1 Set In 1*40"OT
  • Delivery Time
    30-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    60 Sets Per Month

IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat

  • IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat
  • IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat
  • IACS Approved SOLAS 6.5m 36 Persons GRP Gravity Luffing Arm Type Totally Enclosed Lifeboat
Get Price Contact Now

Product Introduction

The SOLAS Standard 6.5m 36 Persons Gravity Luffing Arm Type Totally Enclosed Lifeboat is a special life saving boat installed on the ship and used to rescue the crew and passengers in the event of a ship crash. It is powered by diesel engine and composed with floating material to prevent sinking when capsizing. There are LSA equipment such as fresh water, ration food, flares etc inside which can help the persons for survival. It is a mandatory device for sea vessels according to the SOLAS 1974. And it can increase the opportunity for the escaping when there is emergency situation occurred.

It meets the following standards and regulations.

1. MSC.47(66)-1996 Amendments Of The International Convention For The Safety Of Life At Sea 1974 And MSC.216(82),MSC.317(89)
2. MSC.48(66) The International Life-Saving Appliance Code And MSC.218(82) ,MSC.272(85),MSC.320(89)
3. MSC.81(70) Revised Recommendation On Life-Saving Appliances And MSC.226(82), MSC.274(85), MSC.321(89), MSC.323(89)

The lifeboats are approved by CCS, BV, ABS, DNV-GL, EC, MED, RMRS, IRS etc.



Equipment data

No. project parameter

Common

Fire-Protected
  •
 Model YZ65C YZ65F
  •
 Main dimensions 6.50*2.32*1.15m 6.50*2.32*1.15m
  •
 Height 3.10m 3.10m
  •
 No. of persons

36P(Life)

6P(Rescue)

36P(Life)

6P(Rescue)
  •
 No-Load Weight 2845kg 3160kg
  •
 Full Load Weight 5815kg 6130kg
  •
 Speed ＞6kn ＞6kn
  •



Air Bottles Quantity/Capacity

 /

3*45L


  •
 Sprinkler system / 1套/set
  •
 Tank Capacity 190L 190L
  •
 Distance Between Hooks 6.1m 6.1m
  •
 HOOK YZHK40(316L)
  •

Engine Type :380J-3

Engine Rated Output:20.6KW

rpm (full load):2800rpm

Manufacturer:Zhenjiang Siyang Diesel Engine Manufacturing Co., Ltd.


Loading temperature: -30~65℃

Working temperature(sea water): -1~30℃

Outside color: 国际橙色International orange

Cooling method : closed cooler

Starting method :Two Batteries

Fasteners yachts SUS316 stainless steel material, the leakage steel for stainless steel fittings, hull material is glass fiber reinforced plastic.

Product Feature

1. Completely meet SOLAS regulations and LSA codes.

2. FRP(GRP) material, high strength, light weight, seawater corrosion resistant.

3. International orange color for easy searching.

4. Unsinkable ability improve the safe function.

5. Reliable stability and free board for empty and full load.
